Charging Port Options:

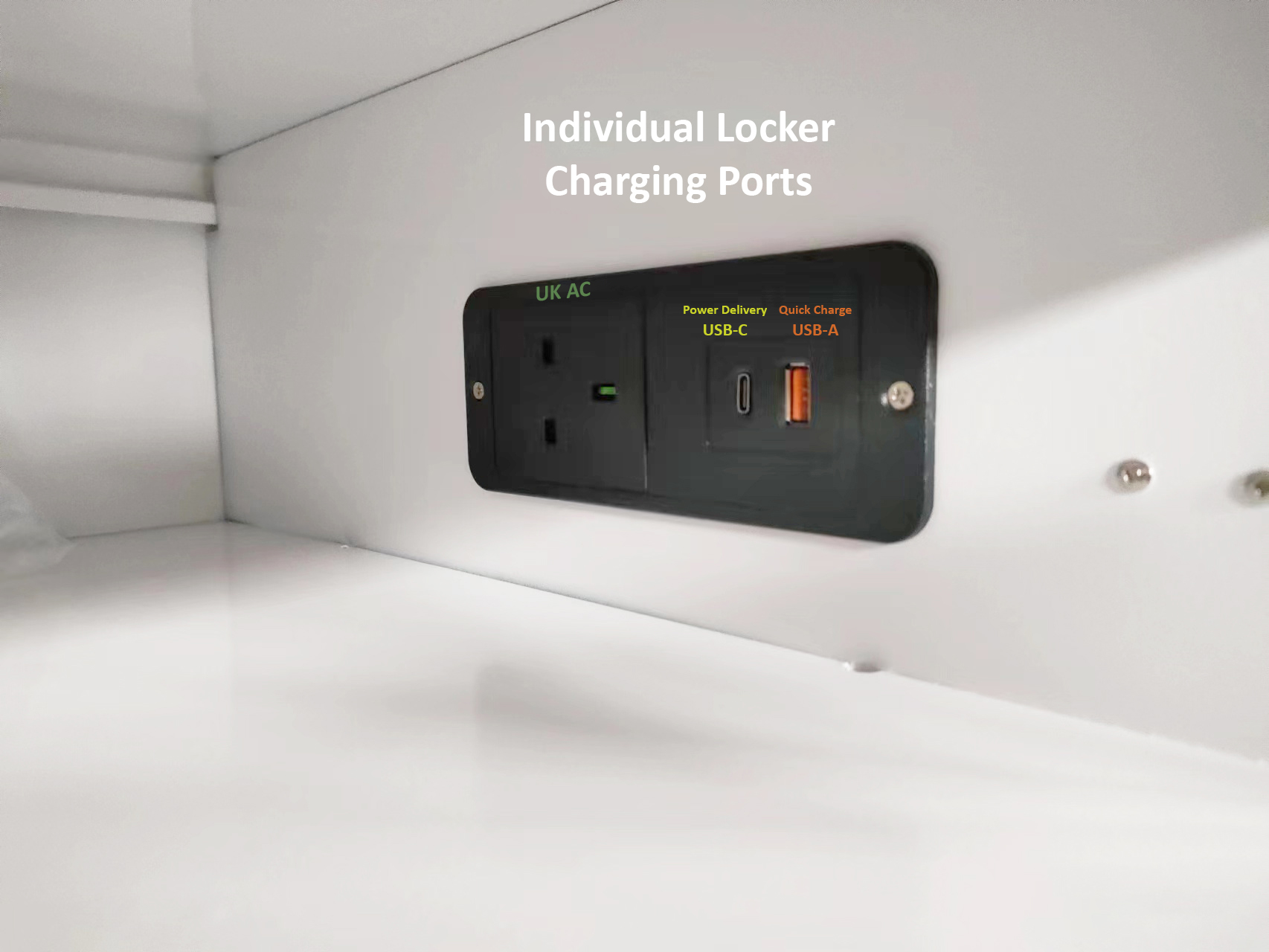

Option 1:

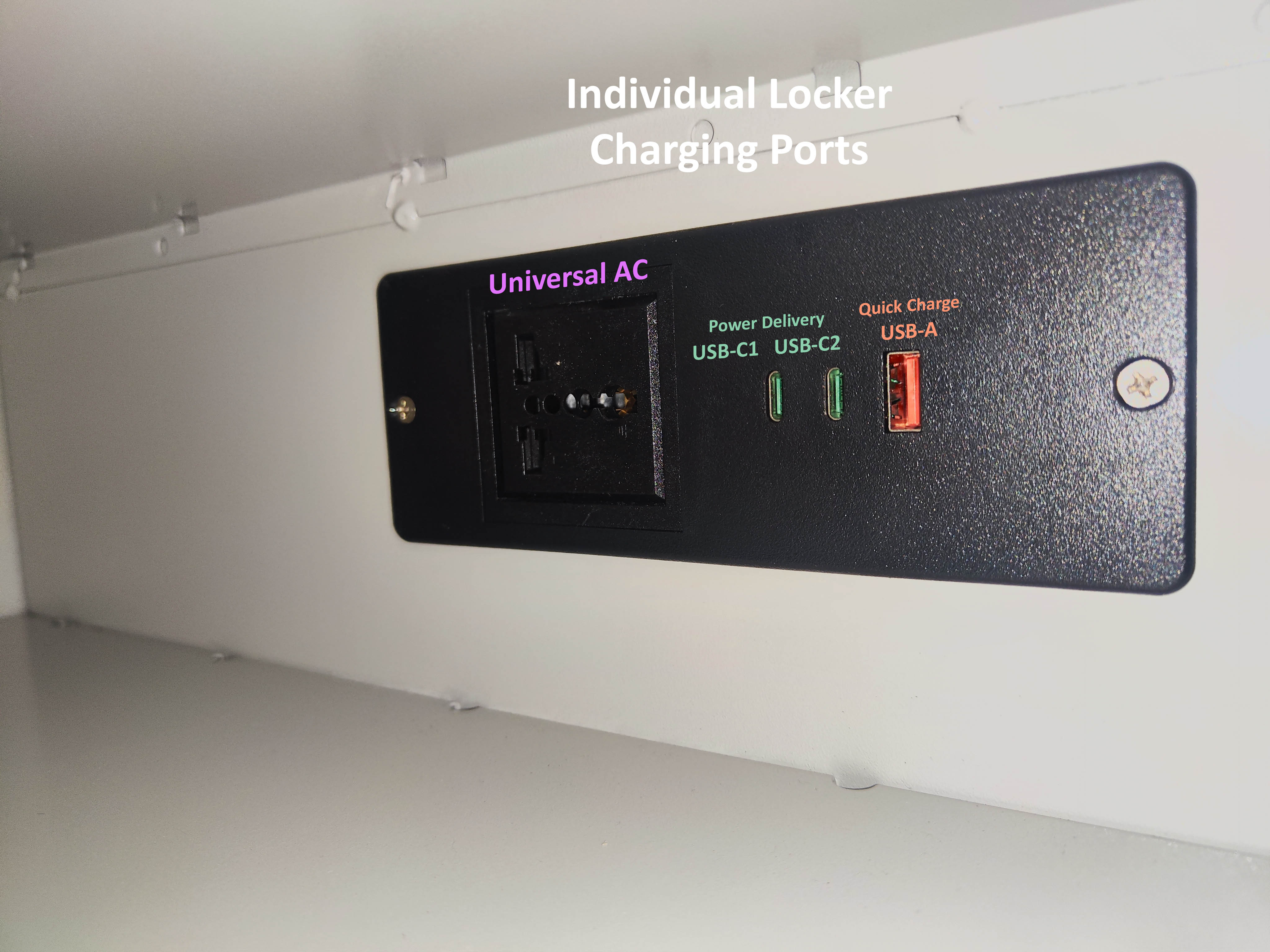

Option 2:

PURPOSE

Charge, Storage and Protect your smart devices.

WAYS TO UNLOCK LOCKER

1. Face Recognition: Scan face to unlock door.
   Benefit: No use of consumables. No need to create and remember passcode. Convenient and saves time.

2. Passcode: Type numeric code to unlock door.
   Benefit: No use of consumables. Simple to use.
3. Access IC Card: Swipe card to unlock door.
   Benefit: No need to create and remember passcode. Convenient and saves time.

4. Barcode: Scan barcode on student card to record or unlock door.
   Benefit: No need to create and remember passcode. Convenient and saves time.


SUITABILITY

1. Public Use (Foyer, General Office & Library)
2. Internal Use (Classroom & Office)

SPECIFICATIONS & FEATURES

1. Model: V-Lab CM24
2. Number of Lockers: 24
3. Lockers Layout: 2*12
4. Output Charging Ports Options:


   • Option 1:   1 UK AC Port + 1 USB-C Port + 1 USB-A Port) per locker
     USB-A: 5V3A  9V2A  12V1.5A
     USB-C (20W): 5V3A  9V2.22A  12V1.67A
     USB-A + USB-C: 5V3A


   • Option 2:   1 Universal AC Port + 2 USB-C Ports + 1 USB-A Port per locker
     USB-C1 / USB-C2 (65W): 5V3A  9V3A  12V3A  15V3A  20V3.3A
     USB-A: 5V3A   9V3A   12V3A   20V3A
     USB-C1 + USB-C2: 45W+20W (5V3A  9V3A  12V3A  15V3A  20V2.25A  +  5V3A  9V2.22A  12V1.67A)
     USB-C1 + (USB-C2 + USB-A): 45W+15W (5V3A  9V3A  12V3A  15V3A  20V2.25A  +  (5V1.8A + 5V1.8A))
     USB-C1 + USB-A: 45W+18W (5V3A  9V3A  12V3A  15V3A  20V2.25A  +  5V3A  9V2A 12V1.5A)
     USB-C2 + USB-A: 20W (5V2A + 5V2A)



1. Input: 100-240V
2. Slot Dimension: Able to fit and charge up to 14 inch Laptop, Ultrabook, Chromebook, Macbook, Ultrabook, Tablet PC, iPad, Samsung Tablet & many more
3. 8 Inch Multi-Function Touch Screen
   1. Digital Lock: Face Recognition, Passcode, IC Card & Barcode
   2. Daily Timer for auto-stop charging
   3. Shows History Log
4. Cabinet Dimension: L940* W470* H1513 mm (exclude base)
   Cabinet Dimension: L940* W470* H1636 mm (with base)

5. Weight: 105kg
6. Cabinet Color: Pale Green Doors + White Body Frame
7. Cabinet Body Material: 1.2mm Cold Roll Steel (with Powder Coating) for Higher Durability & Security
8. Number Labels on Doors

9. Smart Timer Control with Over Current Protection to safeguard devices
10. Locking System: Open lockers with Access Card or One Passcode System
11. Widely Use In: School, Classroom, Office, Hotel, Hospital, Airport, Gym & etc.
12. Accessories:
    1. Access Cards and Main Cards
    2. Security Keys (Emergency Key Open all lockers)
    3. User Manual

*Note: We do not supply the cabinet to no lift unit or level. In the event that the lift is not accessible, we will deliver the item at the ground floor.

*The product color might differ from the actual color due to camera and lighting
*All pictures above are for illustration purpose only.
*Please allow 1-3cm error due to manual measurement
