SPECIFICATION AND FEATURES

• Model: D8032-12C / D8032-16C
• Device Capacity: 12 / 16
• Device Slot (in mm): D319*W18*H195
• Cabinet Dimension (in mm): 522*806*H323
• Cabinet Weight: 23KG

• 8 Security Protection:

  1. Input Over Voltage Protection
  2. Input Under Voltage Protection
  3. Output Over Voltage Protection
  4. Output Under Voltage Protection
  5. Output Over Current Protection
  6. Output Short Protection
  7. DP/DM/CC Over Voltage Protection
  8. Over Temperature Protection

• 20W PD Output:
  DC5V 3A 15W   DC9V 2.23A 20W   DC12V 1.67A  20W
  PPS: 3.3-21VDC 3.25A
  Automatically adjust according to the power required by the device

• 20W Charging Supports PD Protocol:
  PPS/PD3.0/PD2.0
  QC5/QC4+/QC3+/QC3.0/QC2.0
  AFC
  FCP
  HV/LV SCP
  PE2.0/PE1.1
  SFCP
  TFCP
  BC1.2 DCP
  Support Apple & Samsung Device

  Input Frequency: 50/60Hz
  Output voltage: DC5V-12V
  Output current: Max 3A
  Automatically adjust according to the power required by the device

• LED Indicator: Red: Charging; Green: Fully Charged

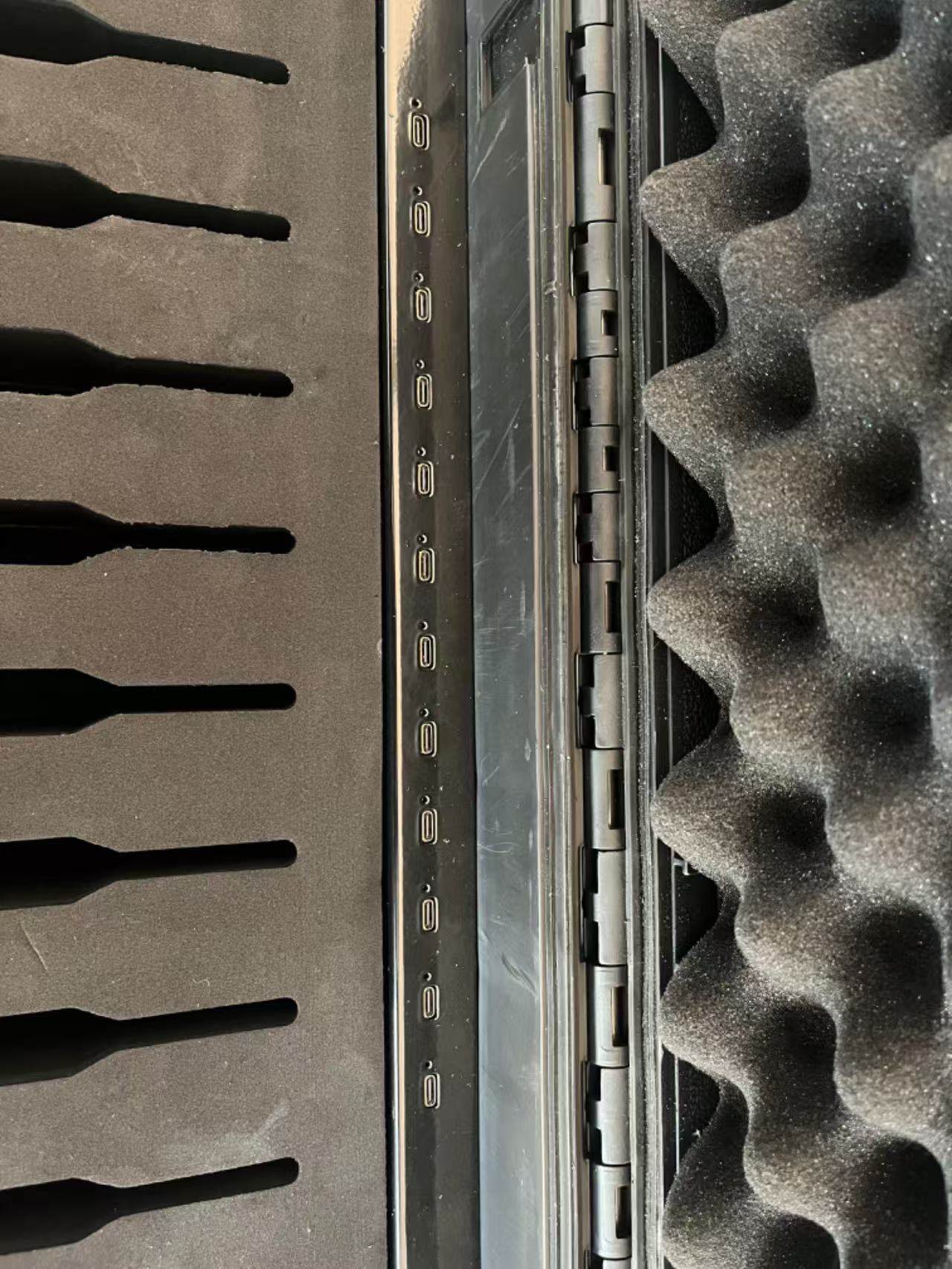

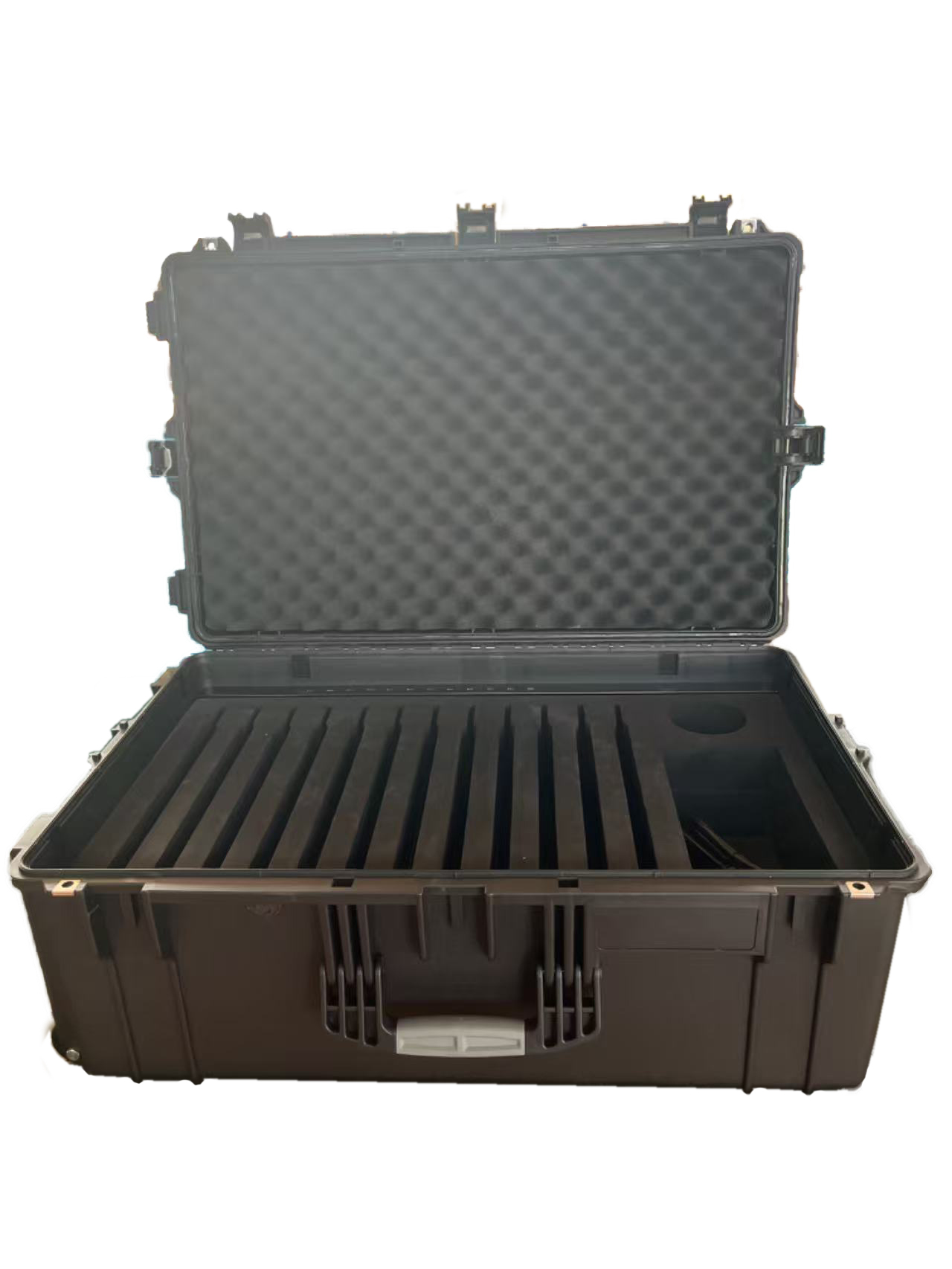

• Separator Material: EVA, anti-vibration sponge provides cushion and prevents scratches on devices
• Cabinet Body Material: High-Strength Pressure PP
• Cabinet Color: Black

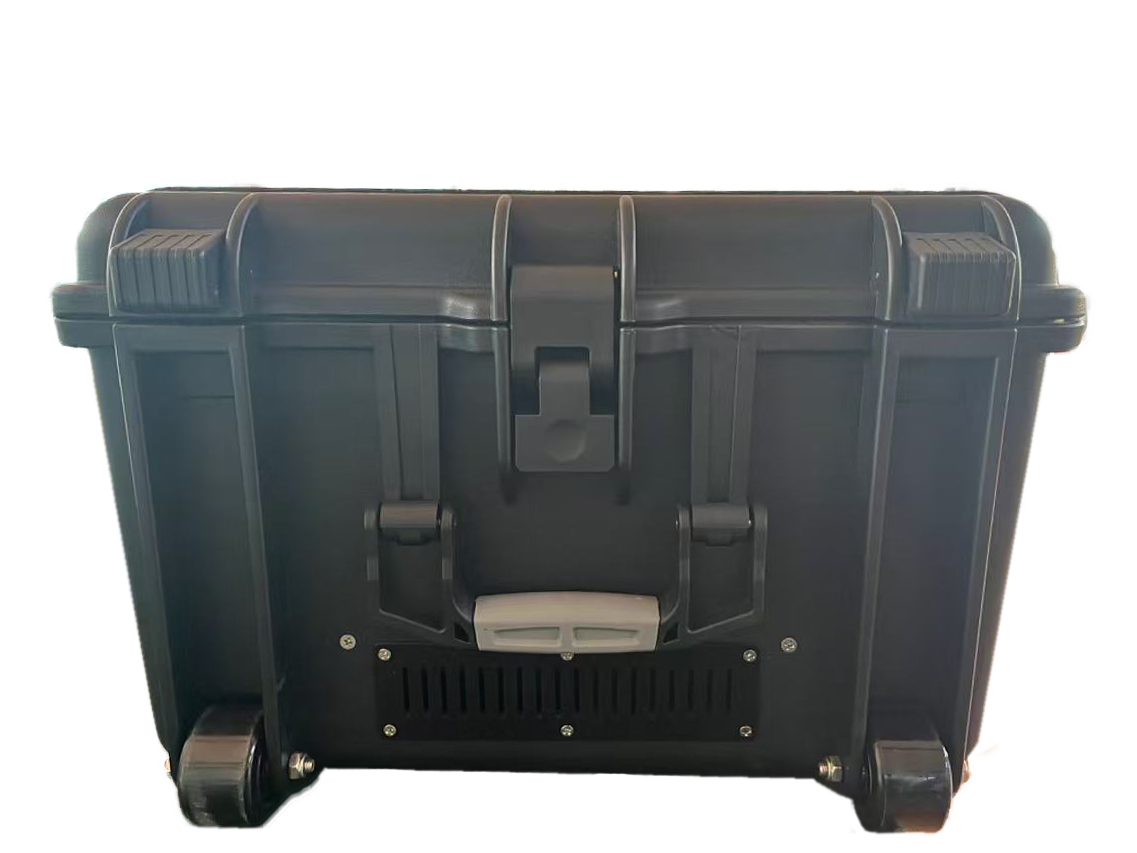

• Handle: PP Material, designed to be ergonomic, 3D angle design
• Lock System: Padlock Hole (exclude Padlock)

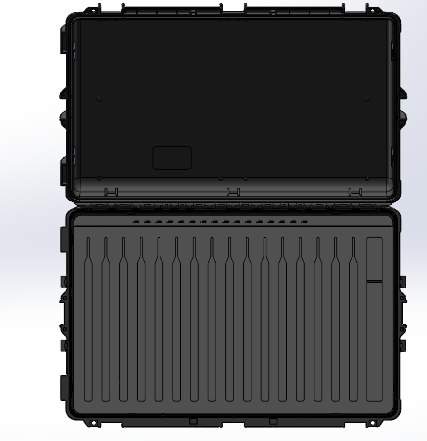

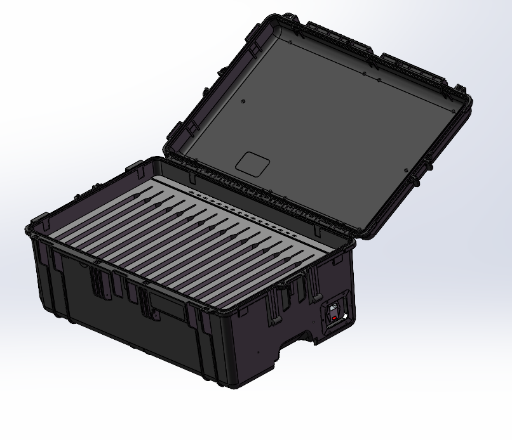

• Unpack Method: 90°/180° Open

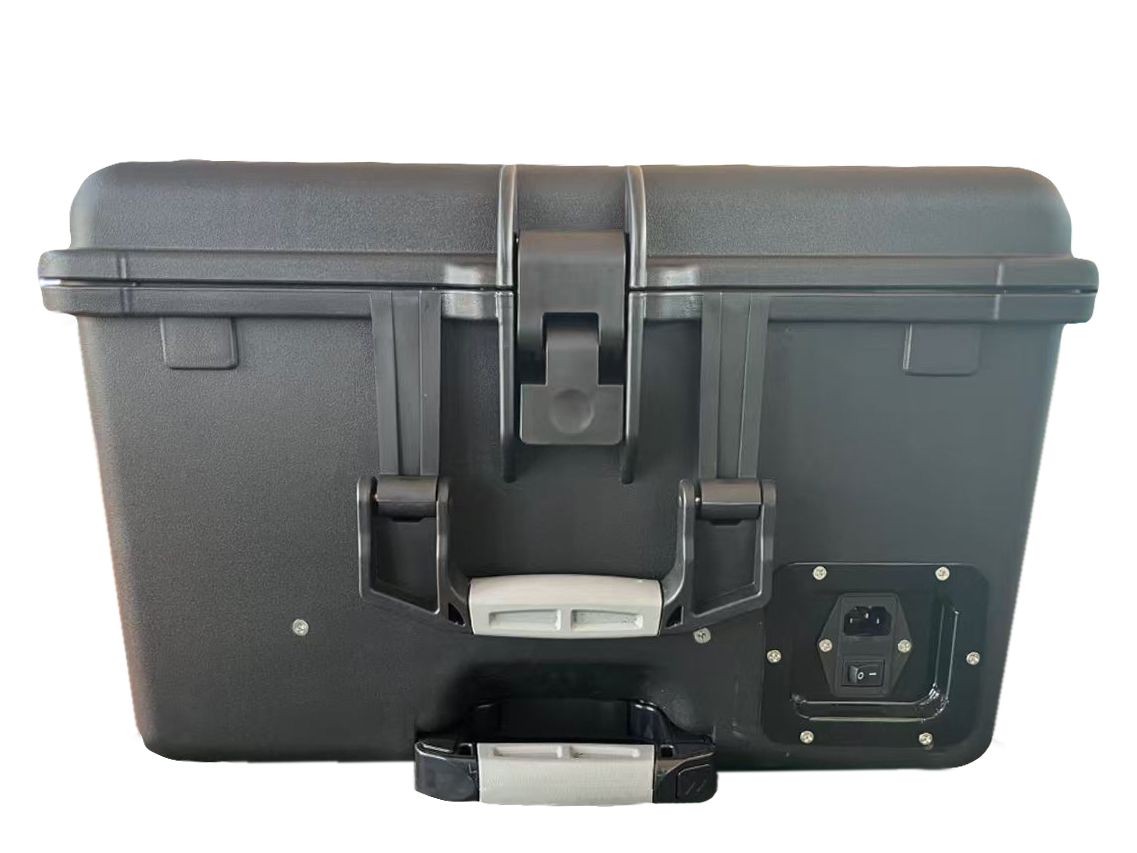

• External Power Button
• Input: 220-240V
• Certificates: CE, RoHS, COC
• Widely Use In: School, Classroom, Office, Hotel, Hospital, Airport, Gym & etc.
• Accessories:

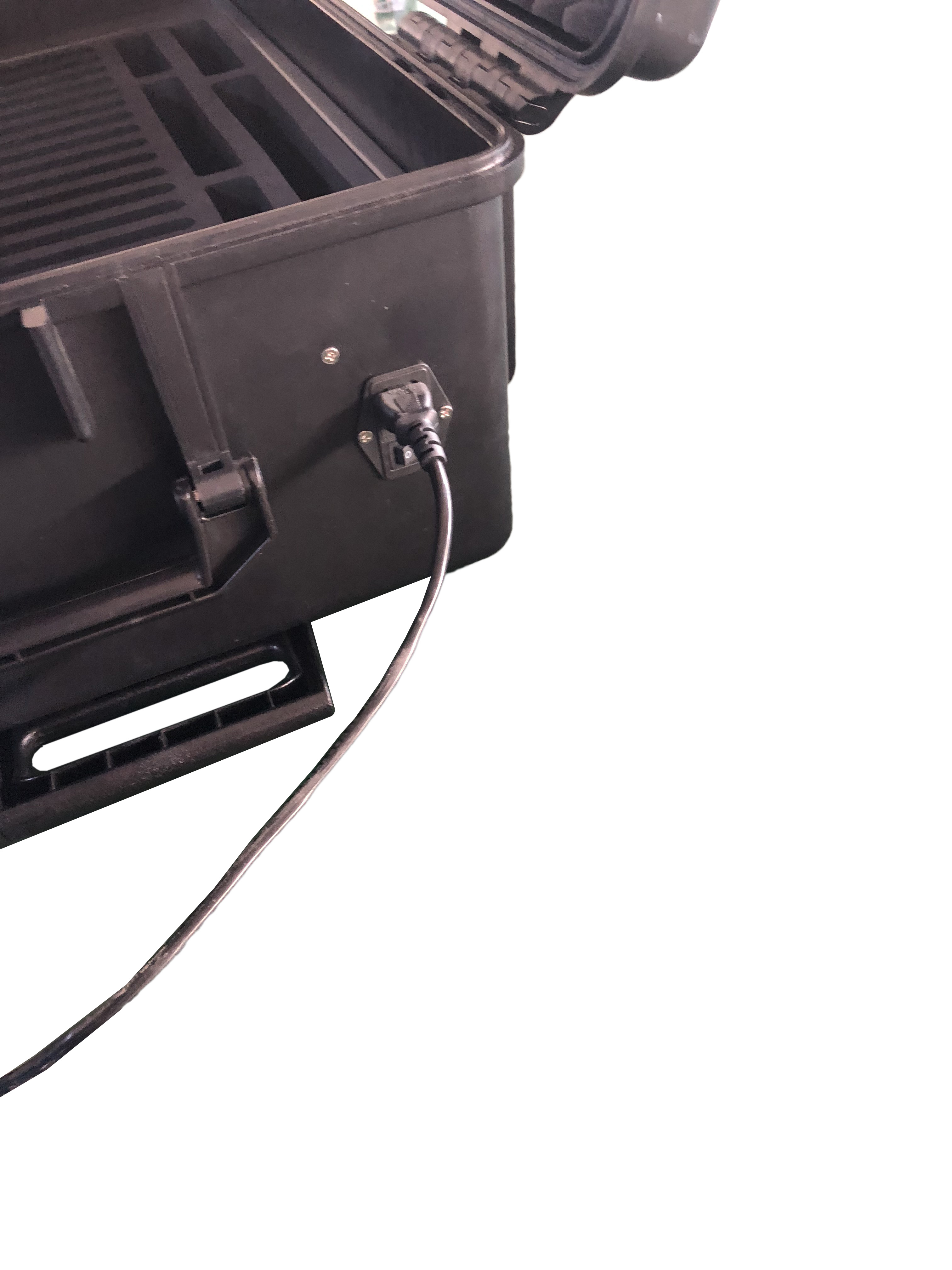

  1. Power Cable (x1)

*All pictures above are for illustration purpose only.
